here's my newest creation,this antenna is a multiband vertical antenna.

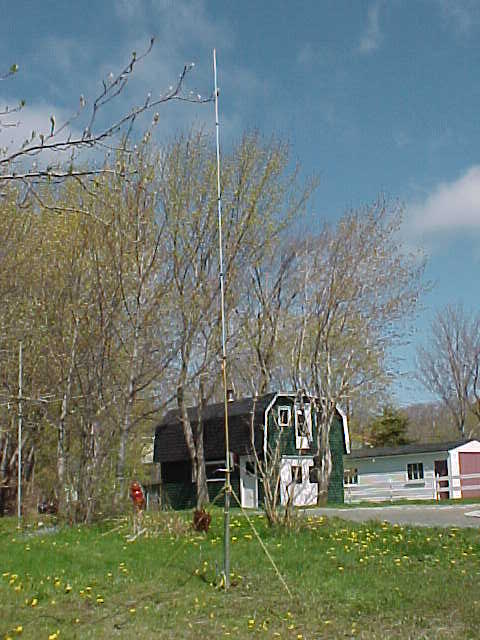

| as she sits at the present moment |
|

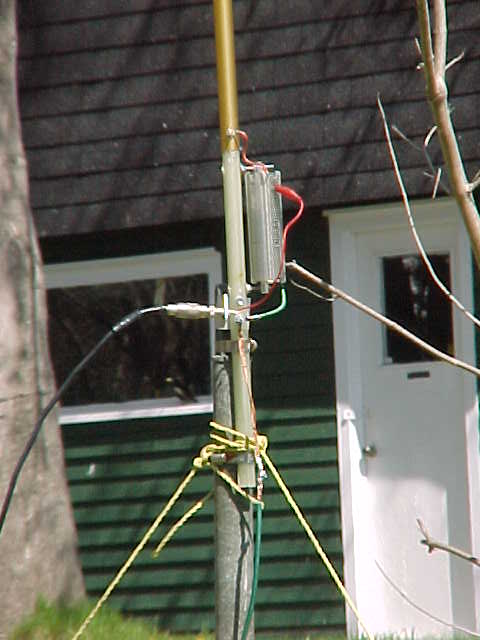

| matching network. bottem loaded |
|
| close up shot of the matching network |
|

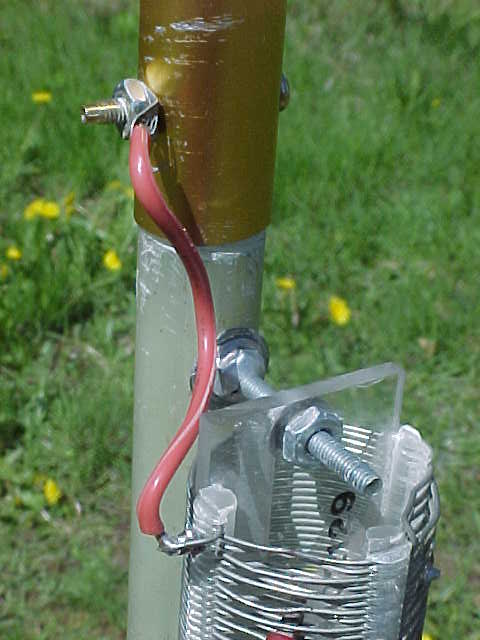

| whip too coil connection |
|

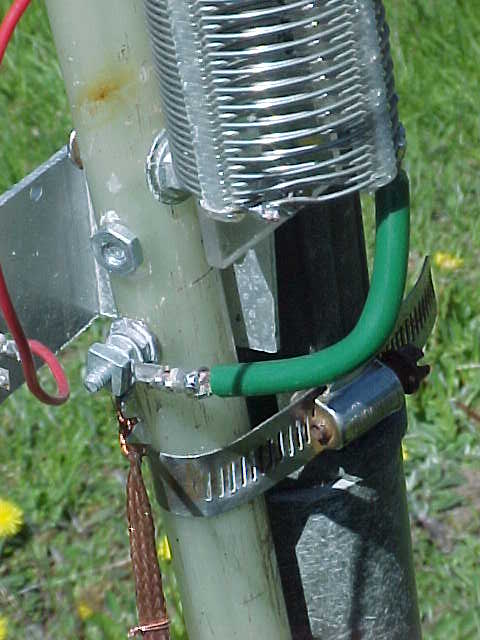

| grounding end of the coil |
|

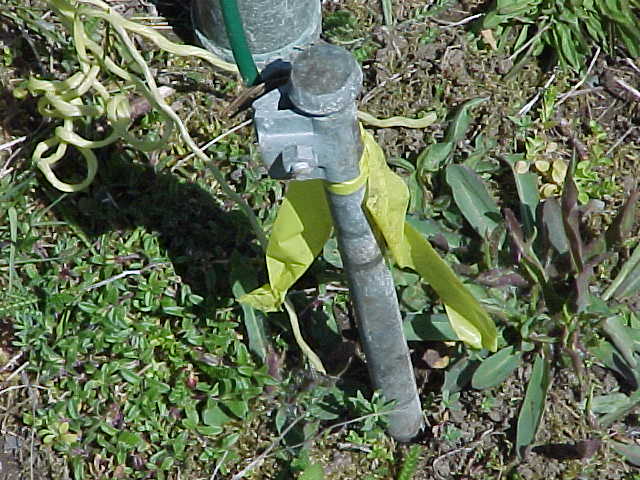

| simple but effective grounding rod |
|

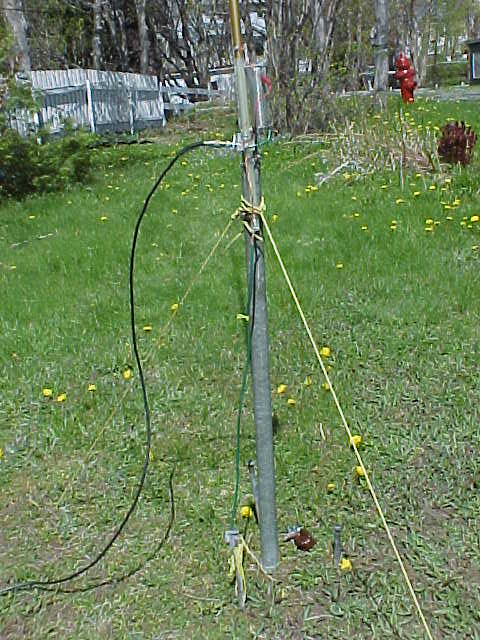

| bottem section of the vertical antenna |
|

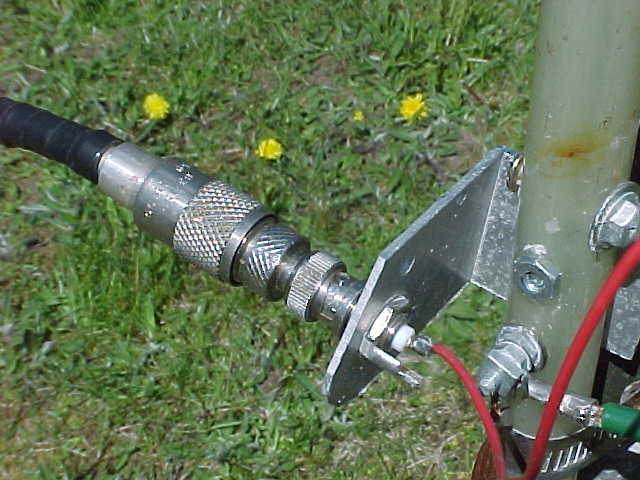

| coax connection,plate is grounded to coil. |
|
more testing well take place shortly,results well be posted here,stay tuned.
73 de vo1mds
|
